Ended 72/W - TOA 8 Channel Modular Mixer & Amplifier

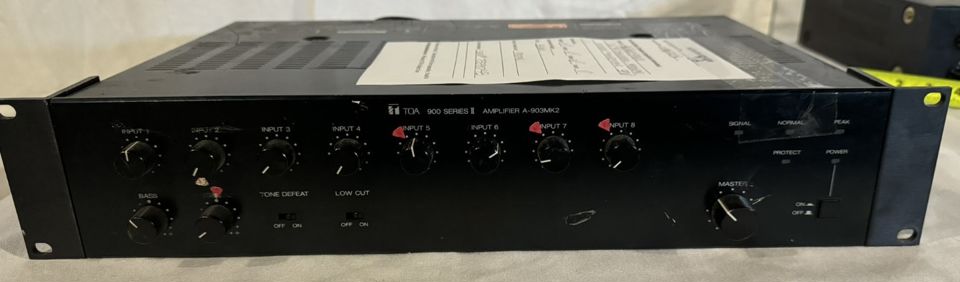

TOA model A-903MK2UL 8 Channel Modular Mixer & Amplifier, 30W.
High Performance: The TOA Modular Mixer/Amplifiers are engineered for high performance with wide frequency response, very low noise and distortion, and excellent output regulation.
This model is currently offered new online for $515 - $635.
3.4" x 16.5" x 11"
SN 73390743
Shipping weight is 17.2 lbs plus packing and boxing of several pounds.

Thanks to Knights Sound and Lighting for these SPECIFICATIONS For The TOA Mixer/Amplifier:
Type: 8-channel mixer power amplifier
Power Requirement: AC mains, 120 V, 60 Hz
Power Consumption: 60 W
Output Power: 30 W RMS
Power Band Width: (D) 20 〜 20,000 Hz, 0.5% THD, (T) 50 〜 20,000 Hz, 0.5% THD
Frequency Response: (D) 20 〜 20,000 Hz, ±1 dB
(T) 20 〜 15,000 Hz, ±1 dB, (T) 20 〜 20,000 Hz, +1 dB, -3 dB
T.H.D 0.02% at 1 kHz, rated output
Inputs: Eight (8) Input Ports: Each port accepts any input modules.
One Bridging Input/Output
Input Sensitivity /Impedance: Input Port #1 to #8 : 100 mV/10 kΩ
Bridging Input/Output: 100 mV/3.3 kΩ
Preamp OUT /Power Amp IN: 1000 mV into 600 Ω/1000 mV, 10 kΩ
Outputs(T)=Transformer (D)=Direct Main (T): 4 Ω, 25 and 70 volts, balanced, Main (D) : 8 Ω, unbalanced
Aux : 10 kΩ, 1 V
Output Regulation(1kHz) (D) Less than 0.5 dB, no load to full load
(T) Less than 1.0 dB, no load to full load
S/N Ratio(Band Pass 20 〜 20,000 Hz) Tone defeat switch on Master volume min : 90 dB
Master volume max: 77 dB
Power amplifier only: 105 dB
Tone Controls: Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Controls: 8 Input gain control, 1 Master gain control, 1 Bass control
1 Treble control. 1 Power ON/OFF switch. 1 Tone defeat switch.
1 Low-Cut switch: (60 Hz, 6 dB/octave)
Indicators: 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
Protection: Self-protection, with AC fuse (inside)
Connectors: Input No.1 to No.8: Card-edge connector
Bridging, Mixer preamp. output, Power amp. input, Aux output: RCA phono jack
Output: Screw-terminal strip
Mute, Remote VR: Screw-terminal strip
AC outlet: 3-pin grounding type
AC power cord/plug: SJT, 3-prong type
Temperature Range: -10℃ 〜 +60℃ (12゜F 〜 140゜F)
Finish: Black
Dimensions(W×H×D): 420(16.54") × 99.1(3.90") × 318(12.52") mm
Weight: 7.8 kg (17.20 lb.)
